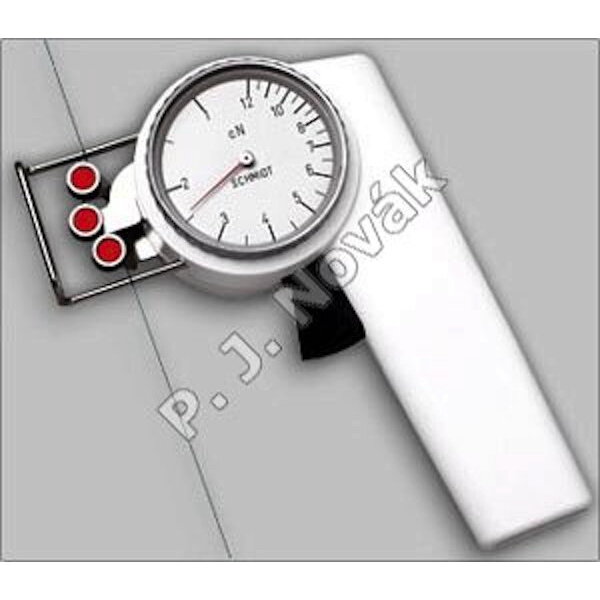

ZF2-12 - yarn Tensionmeter 1-12 cN (1 cN = 1,02 gr.) - for use in many industrial applications. Economical low tension measuring instrument for checking yarn, threads,... Built-in material thickness compensator improves accuracy for changing diameters on DX2-1000 and higher ranges. Filament guide and roller lifting mechanism ensure easy acquisition of the running material. Built-in mounting holes permit fixed installation for continuous tension measurement. Accuracy: ±1% full scale or ±1 graduation on scale. Scale diameter: 54 mm. Temperature range: 10 - 45°C. Air humidity: 85% RH, max. Weight, net (gross): 470 g (1000 g). Dimension:157 x 85 x 32 mm (LxWxH). With standard roller for max. line speed of the measured material 900m / min. Calibration for Filament 25 tex.
