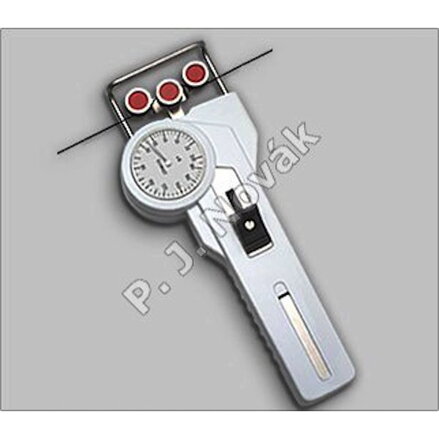

DX2-8000 - yarn Tensionmeter 1000-8000 cN (1 cN = 1,02 gr.) - for use in many industrial applications. Built-in material thickness compensator improves accuracy for changing diameters on DX2-1000 and higher ranges. Filament guide and roller lifting mechanism ensure easy acquisition of the running material. Built-in mounting holes permit fixed installation for continuous tension measurement. Accuracy: ±1% full scale or ±1 graduation on scale. Scale diameter: 41 mm. Temperature range: 10 - 45°C. Air humidity: 85% RH, max. Weight, net (gross): 470 g (1000 g). Dimension: 188 x 85 x 45 mm (LxWxH). Guide rollers are not included in the price. Select the guide rollers according to the following criteria: Max. line speed of the measured material, diameter of the measuring material, Roller material (hardcoated aluminium, plastic, steel, etc.). Roller shape V-grooved or with asymmetrical groove,... See standard roller R10003.
